The Belmont® Rapid Infuser Disposables and Accessories

Need to order disposables or accessories? Contact Us

Disposables

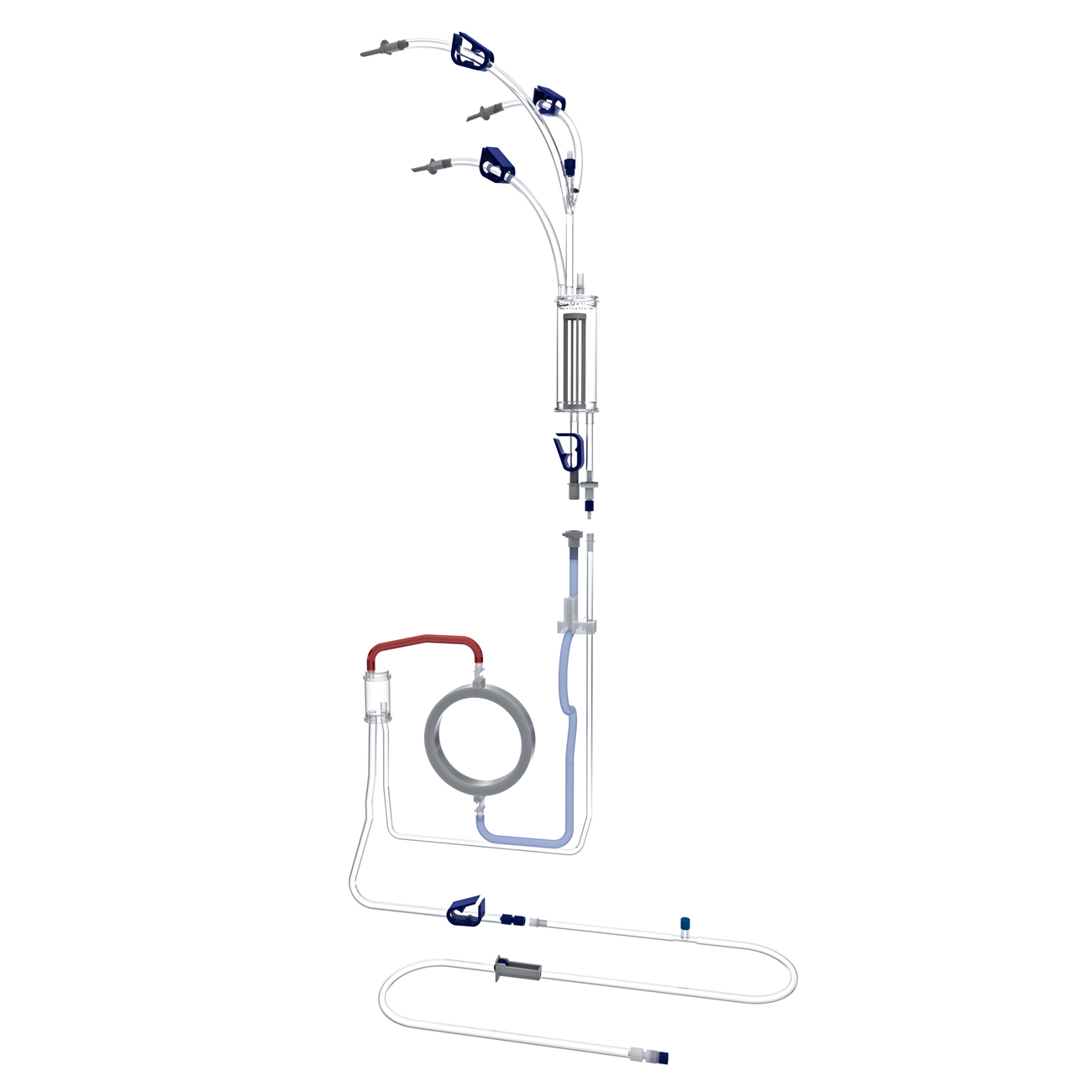

3-Spike Disposable Set (12/box)

903-00006

The 3-Spike Disposable Set is the only disposable required to operate The Belmont Rapid Infuser at its full range of flow rates. The set is color-coded for easy installation and is packaged pre-assembled with connections made between the heat exchanger, reservoir and patient line. Medical grade stainless steel rings within the sterile fluid path contain a very large surface area, resulting in an immeasurably minute difference in temperature between the heat exchanger and fluid. The reservoir can be swapped out mid-case for the larger 3.0L Reservoir via quick-connect luer fittings.

  • Heat exchanger
  • 54-inch (1.37 m) patient line with injection port
  • 120 mL reservoir with 250-micron coarse blood filter
  • Aluminum-free

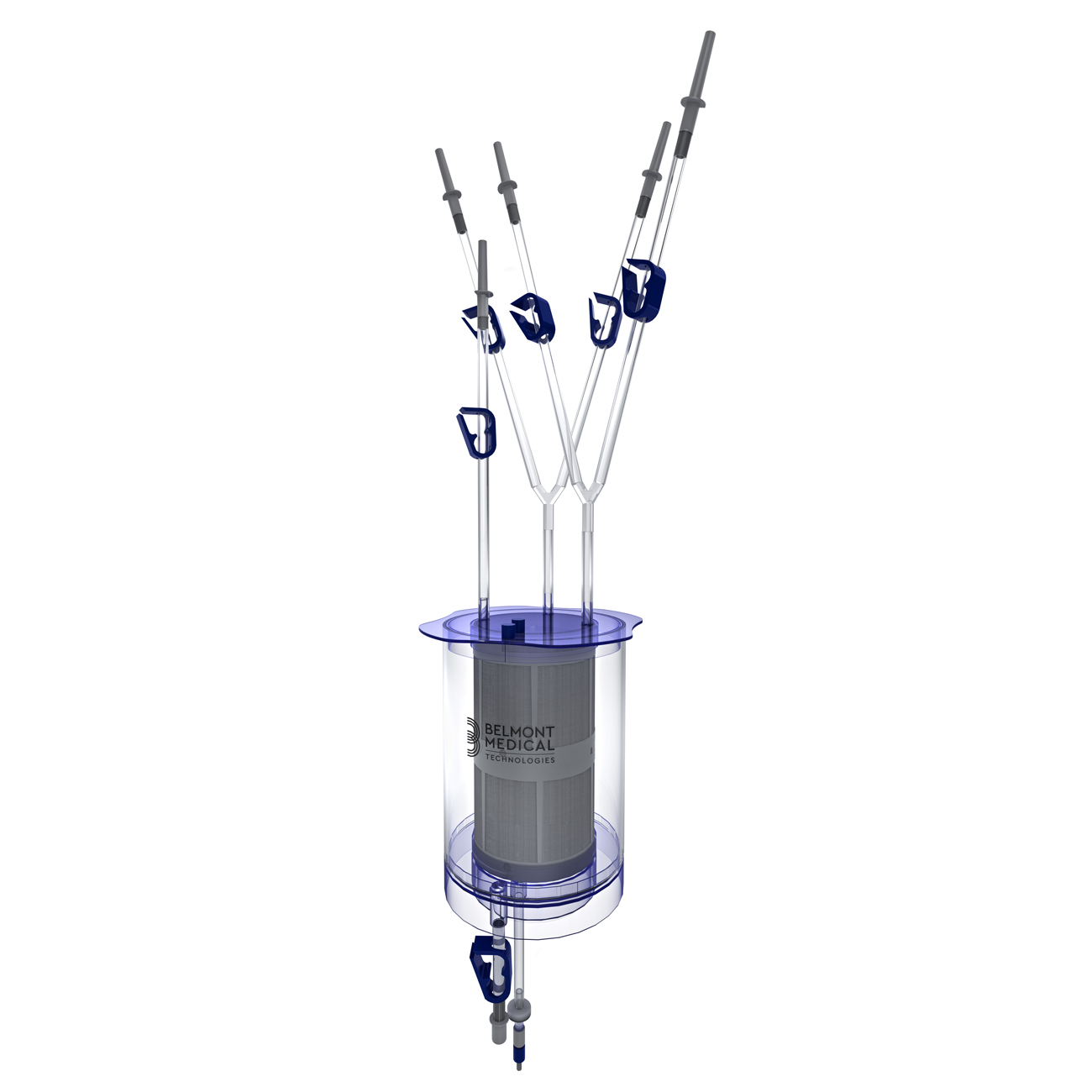

3.0 Liter Large Volume Reservoir (LVR) (6/box)

903-00018

Designed to facilitate cases requiring large volumes of fluid, the 3.0 Liter Large Volume Reservoir (LVR) can accommodate up to five infusion bags at one time. The reservoir is fully compatible with the 3-Spike Disposable Set tubing and heat exchanger and can easily replace the standard 120 ml reservoir mid-case via luer and quick-connector fittings. Additional capabilities include the ability to recirculate various blood components through the heat exchanger and back to the reservoir to achieve a more homogenous mixture of infusates prior to administration.

  • 160-micron microaggregate blood transfusion filter
  • 3000 ml storage volume
  • Up to 5 bag spikes

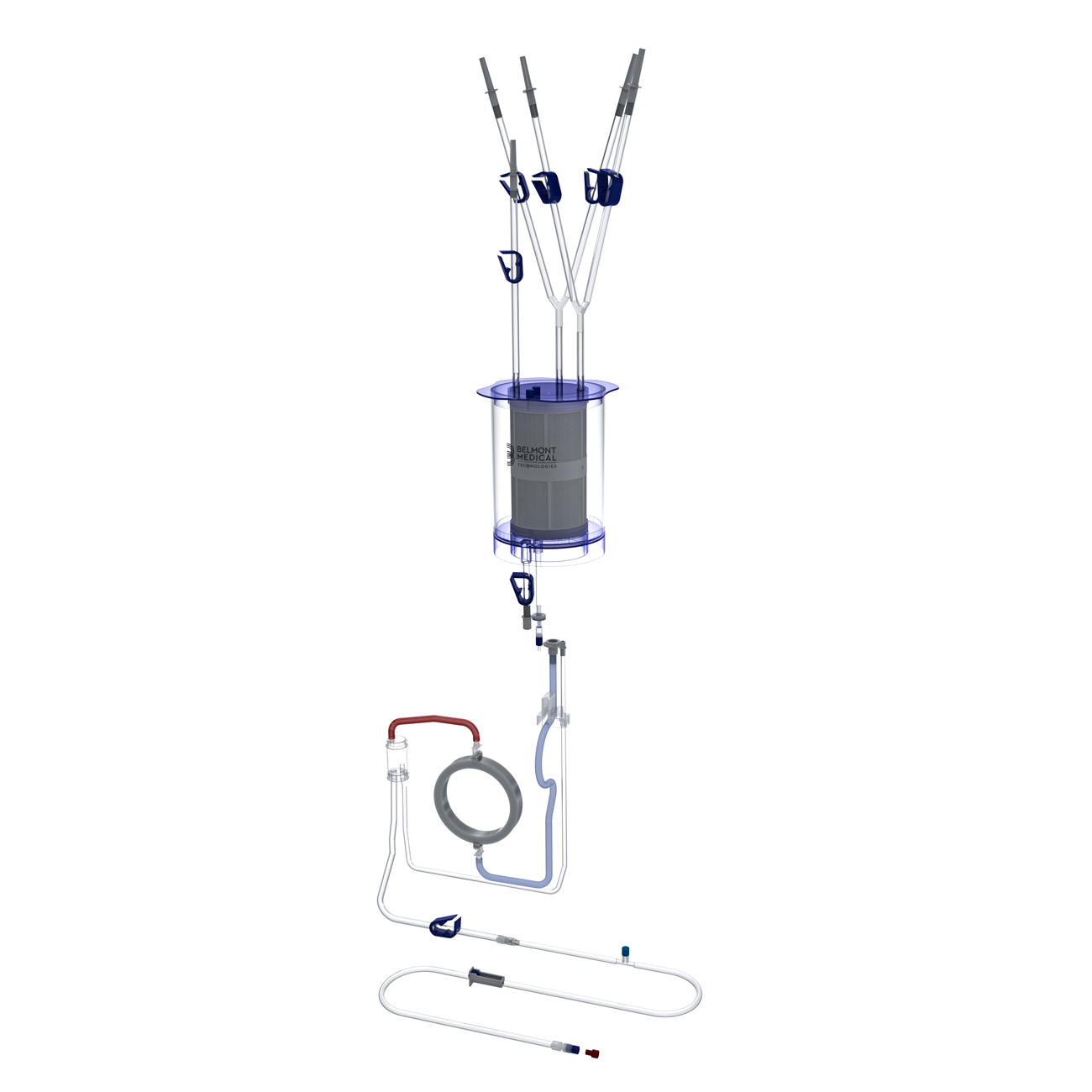

4x4 LVR & Heat Exchanger Set (4 LVR + 4 Heat Exchangers with Patient Line)

903-00032

The Reservoir and Heat Exchanger Set consists of four heat exchangers with patient line and four 3.0 L reservoirs and is designed to facilitate cases requiring large volumes of fluid. Connection between the reservoir and heat exchanger must be made by the end-user.

  • Four 3.0 L reservoirs with 160-micron microaggregate blood transfusion filters
  • Four heat exchangers with 54-inch (1.37 m) patient lines
  • Aluminum-free


3-Spike Disposable Set (6/box)

903-00106

The 3-Spike Disposable Set is the only disposable required to operate The Belmont® Rapid Infuser at its full range of flow rates. The set is color-coded for easy installation and is packaged pre-assembled with connections made between the heat exchanger, reservoir, and patient line. Medical-grade stainless steel rings within the sterile fluid path contain a very large surface area, resulting in an immeasurably minute difference in temperature between the heat exchanger and fluid. The reservoir can be swapped out mid-case for the larger 3.0 L reservoir via quick-connect luer fittings.

  • Heat exchanger
  • 54-inch (1.37 m) patient line with injection port
  • 120 mL reservoir with 250-micron coarse blood filter
  • Aluminum-free

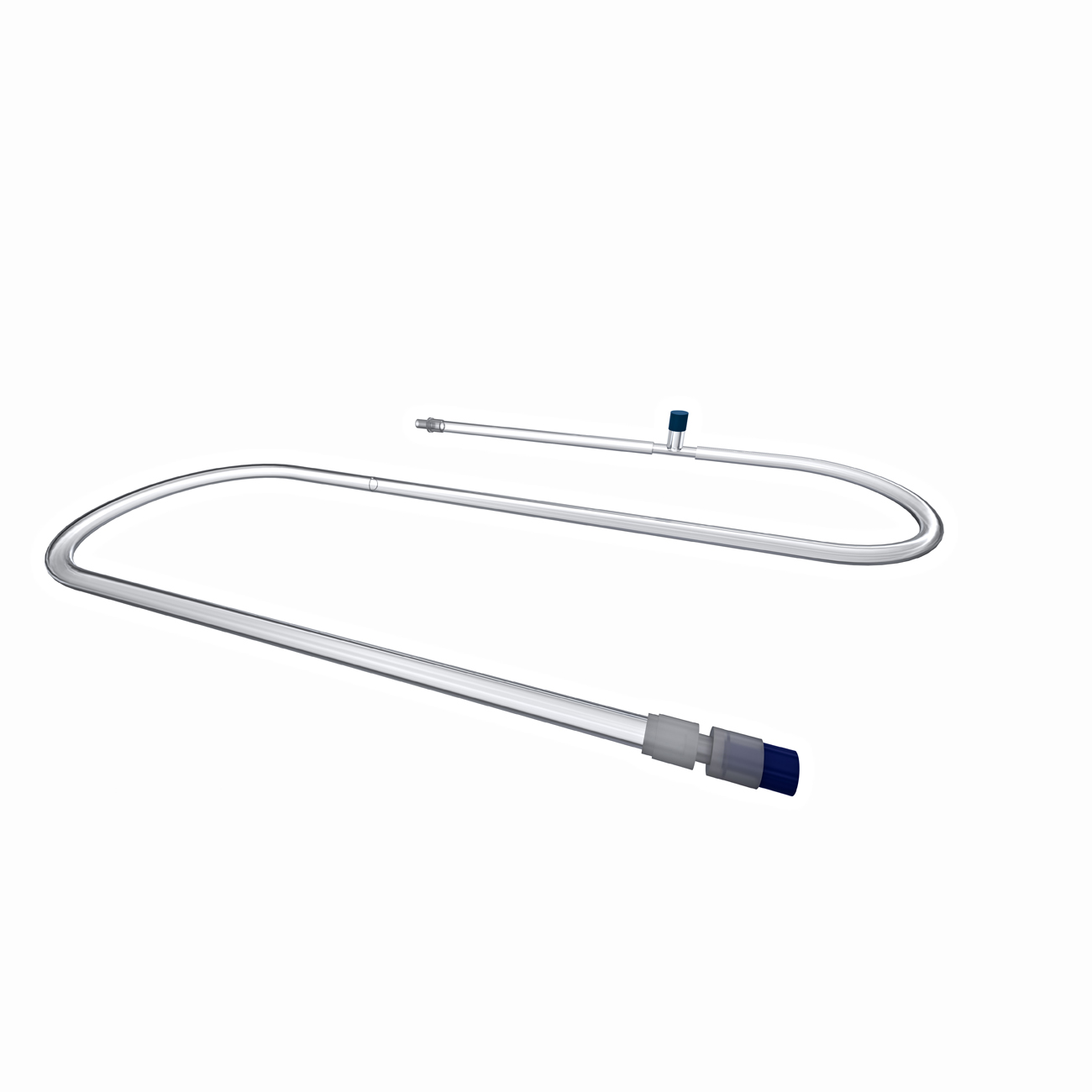

Patient Line Extension (24/box)

903-00022

The standard patient line on the 3-Spike Disposable Set can be extended up to 108 inch (2.7 m) using the Patient Line Extension (PLE), enabling a longer connection to a delivery site.

  • 54-inch (1.37 m) patient line with injection port
  • Luer fittings
  • Aluminum-free

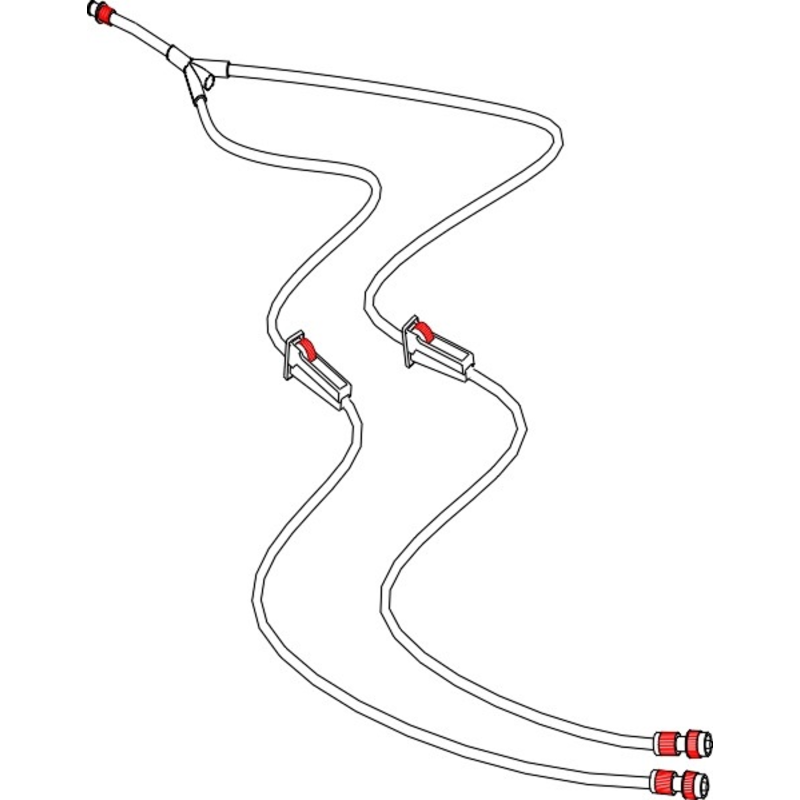

Dual Patient Line (18/box)

903-00004

The standard patient line on the 3-Spike Disposable Set can be easily replaced with the Dual Patient Line (DPL), enabling connection to two-patient delivery sites.

  • Two 54-inch (1.37 m) patient lines with roller clamps
  • Luer fittings
  • Aluminum-free



Accessories

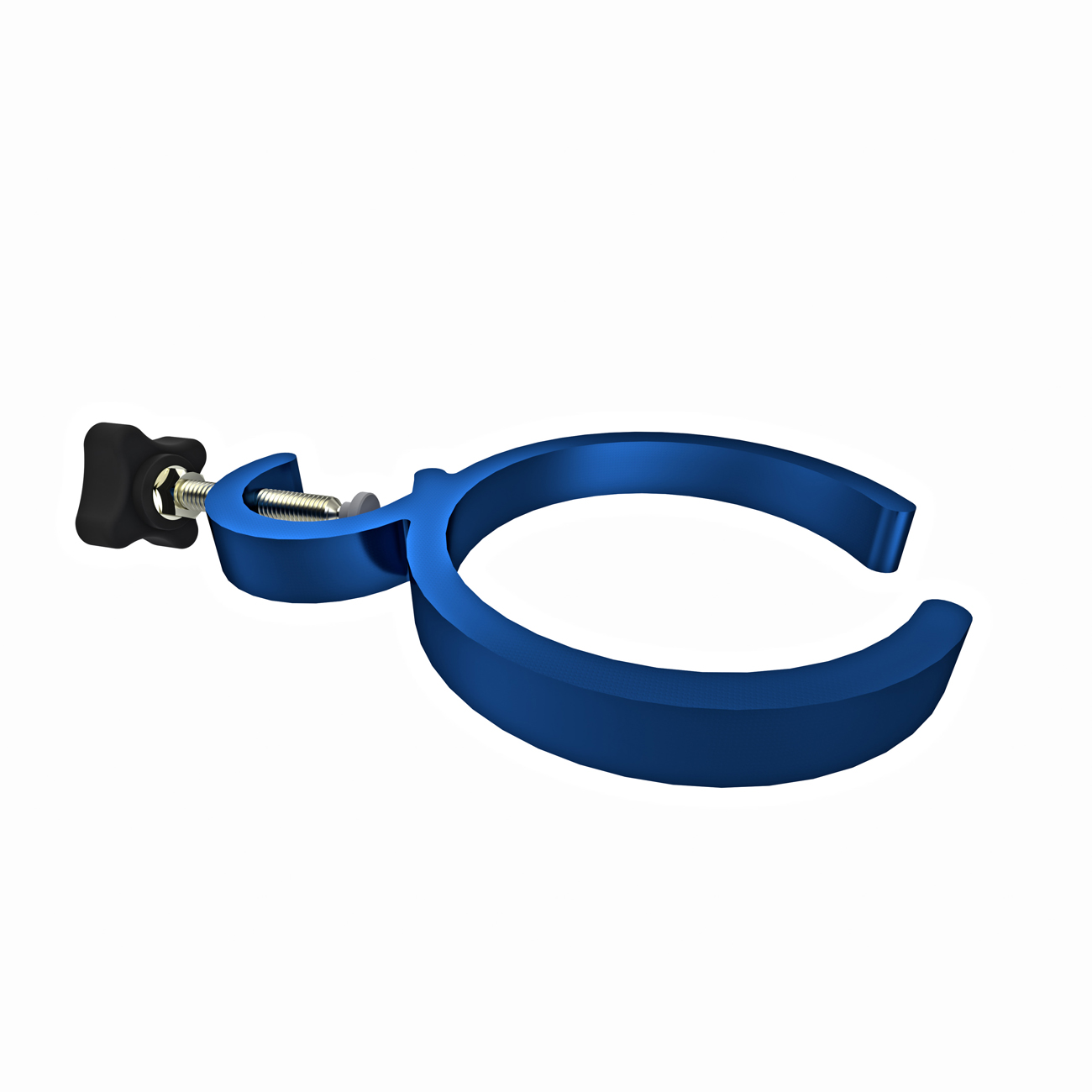

3.0 Liter Reservoir Holder

403-00252

Replacement IV-pole mountable holder for the optional 3.0 L reservoir.
